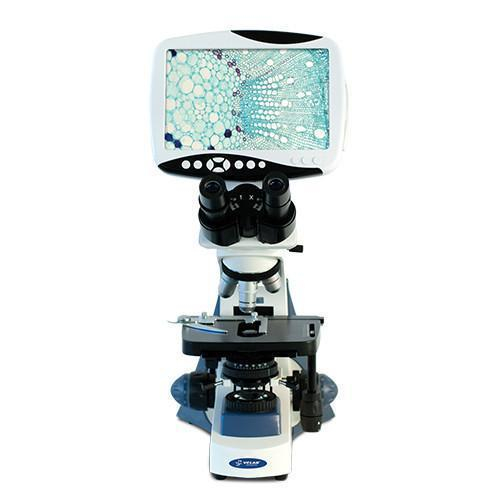

VELAB VE-653 Binocular Digital Microscope with 9" LCD Display

  • Brand VELAB
  • Part # VE-653
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

VELAB, VE-653, Binocular Digital Microscope with Integrated 9" LCD Display

VE-653 Includes Only:

  • AC/DC adapter.
  • Blue, green and yellow filters.
  • Dust cover.
  • Immersion oil.
  • Power cord.
  • SD memory card.
  • USB adapter for SD memory card.

The VE-653 is a digital microscope for professional use and ideal for higher education, research and clinical laboratories. This model comes equipped with an LCD screen and an integrated digital camera.Its specialized software allows data storage and offers editing tools (pointer and arrow) and sample measurements (red, blue, white, black and green color strips). The VE-653 also offers an innovative digital solution in addition to the optional configuration compatible with the phase contrast kit and polarization set.

Features:

  • Diopter adjustment in an eyepiece.
  • Stative, robust, reinforced and easy to transport.
  • Siedentopf type Binocular Head.
  • Lighting with intensity adjustment and field
  • Head inclined at 45° and rotatable 360° diaphragm in lamp.
  • Interpupillary distance of 48 ~ 75 mm.
  • Stage with vernier, millimeter scale, caliper
  • Objectives with colored rings. and stop with height adjustment.
  • Integrated digital camera.
  • AV, mini USB and HDMI interface. SD card slot.
  • Equipped with adapter support for kit phase contrast and polarization (not included).
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
EyepiecesWF 10X/18mm with rubber eyecups and diopter adjustment on one Eyepiece.
HeadBinocular Siedentopf type, 45 degree inclined and 360 degree rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95" and 9" LCD screen (1280 x 800p resolution) with 5.0MP integrated camera, SD card slot, Mini USB and HDMI ports.
NosepieceQuadruple Nosepiece with anti-slip grip and click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-layer Stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationKohler LED with intensity control and field Diaphragm in the lamp.
Power SupplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
EyepiecesWF 10X/18mm with rubber eyecups and diopter adjustment on one Eyepiece.
HeadBinocular Siedentopf type, 45 degree inclined and 360 degree rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95" and 9" LCD screen (1280 x 800p resolution) with 5.0MP integrated camera, SD card slot, Mini USB and HDMI ports.
NosepieceQuadruple Nosepiece with anti-slip grip and click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-layer Stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationKohler LED with intensity control and field Diaphragm in the lamp.
Power SupplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
