Type:: Type: Double Head

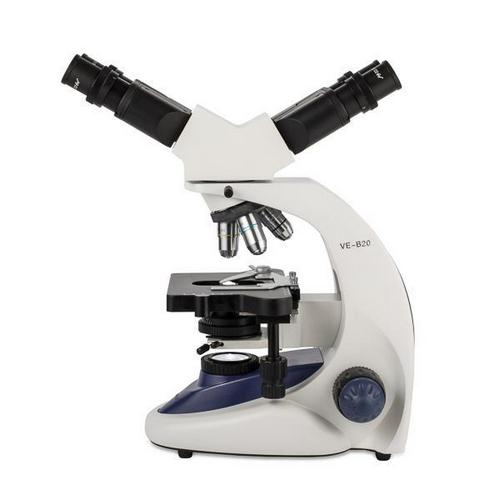

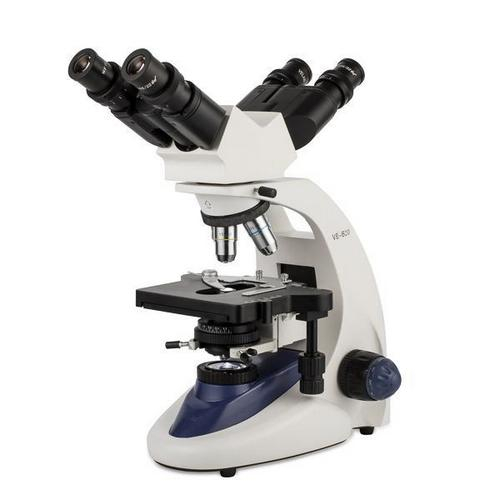

VELAB, VE-B20, Binocular Microscope with Double Head, Advanced Optics, LED Lighting and Quadruple Nose Piece

VE-B20 Includes Only:

Power cord.
Dust cover.
Blue, green and yellow filters.
Immersion oil.

The VE-B20 is ideal for higher education and advanced research. It allows two users to view the sample at the same time. Suitable for routine techniques in clinical laboratories such as cellular differential count in Neubauers chamber, coproparasitoscopic examinations, urinary sediment observation and bacteriology samples.

Features:

Diopter adjustment in an eyepiece.
Stable, robust, reinforced and easy to transport.
Siedentopf type Double Binocular Head.
Lighting with intensity adjustment and field
Head inclined at 30 ° and rotatable 360° diaphragm in lamp °
Interpupillary distance of 48 ~ 75 mm.
Stage with vernier, millimeter scale, caliper
Objectives with colored rings. and stop with height adjustment.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Eyepieces:	WF 10X/22mm with rubber eyecups and diopter adjustment on both Eyepiece.
Head:	Double binocular Siedentopf type, 45 degree inclined and 360 degree rotation, with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops.
Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected achromatic optics, metallic finish and color ring for easy identification.
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Two-Layer Stage with X-Y coaxial movement, 180 x 150 mm/7.08" x 5.90", vernier, millimeter scale, clamp and height adjustment with stop.
Condenser:	Abbe, 1.25 de N.A. with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with tension adjustment.
Illumination:	Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Dimensions:	9.13" x 17.12" x 14.68"

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Eyepieces:	WF 10X/22mm with rubber eyecups and diopter adjustment on both Eyepiece.
Head:	Double binocular Siedentopf type, 45 degree inclined and 360 degree rotation, with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops.
Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected achromatic optics, metallic finish and color ring for easy identification.
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Two-Layer Stage with X-Y coaxial movement, 180 x 150 mm/7.08" x 5.90", vernier, millimeter scale, clamp and height adjustment with stop.
Condenser:	Abbe, 1.25 de N.A. with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with tension adjustment.
Illumination:	Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Dimensions:	9.13" x 17.12" x 14.68"
