VE-B310 Includes Only:
- Microscope
- Dust cover.
- Immersion oil.
- Power cord.
Features:

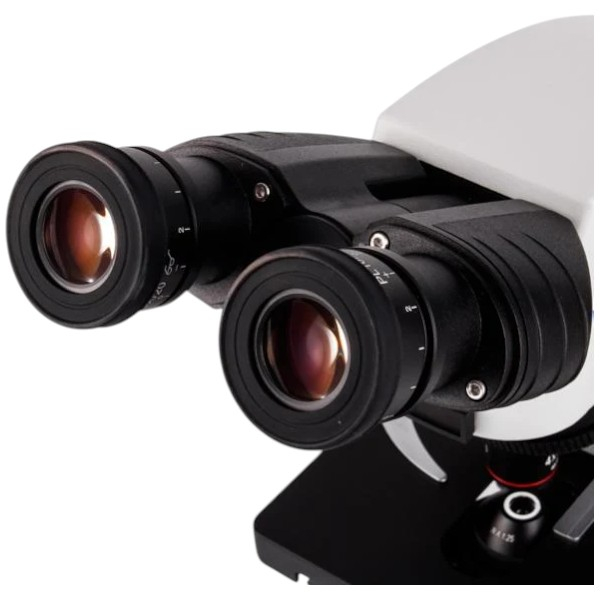

- Eyepieces: PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
- Head: Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50-75 mm/1.96"- 2.95".
- Nosepiece: Quadruple nosepiece with anti-slip grip and cli-ck-stops, mounted on high-tension ball bearings.

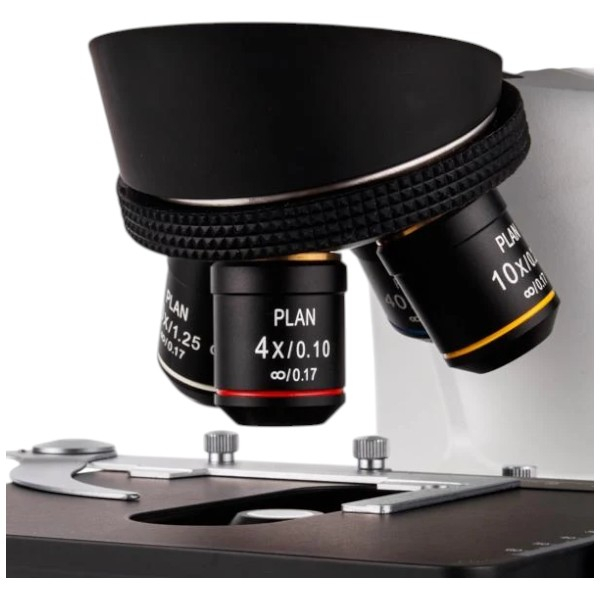

- Objective: 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
- Stand: Stative, robust and reinforced with epoxy paint finish.
- Stage: Two-Layer stage with X-Y coaxial movement, 5.90" x 5.51", Vernier,millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
- Condenser: Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for more configurations (not included).
- Diaprhagm: Iris with filter holder.
- Focusing: Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.

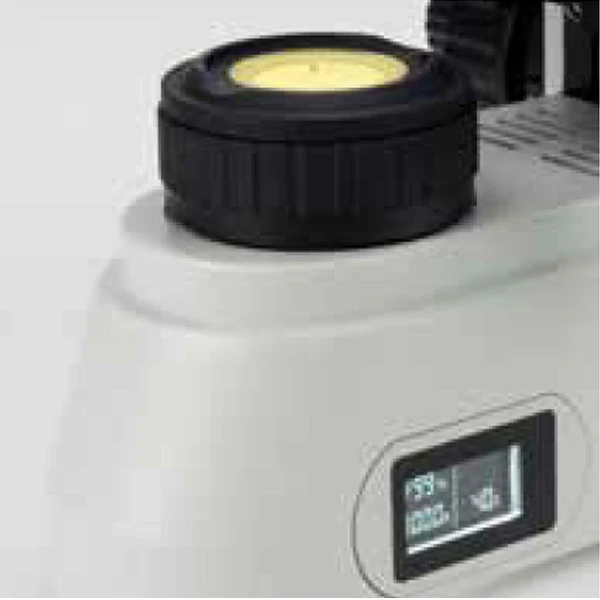

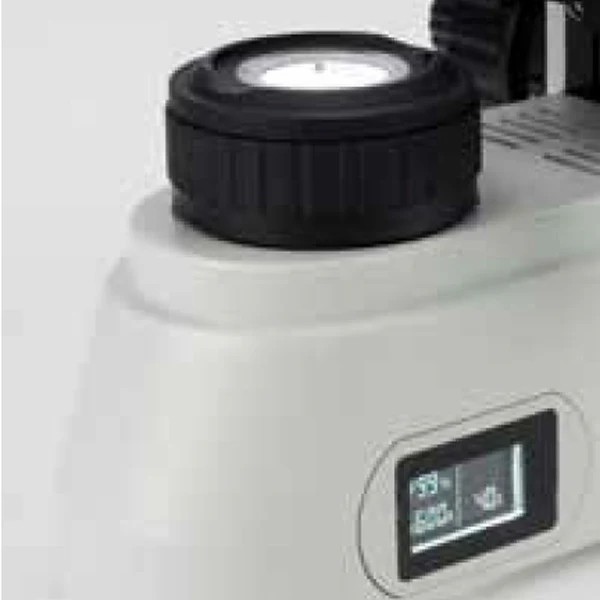

- Illumination: Kohler 3W LED (3000K-5600K), light intensity continuously adjustable; LCD beside the frame to show the color temperature, with intensity control and field diaphragm in the lamp.

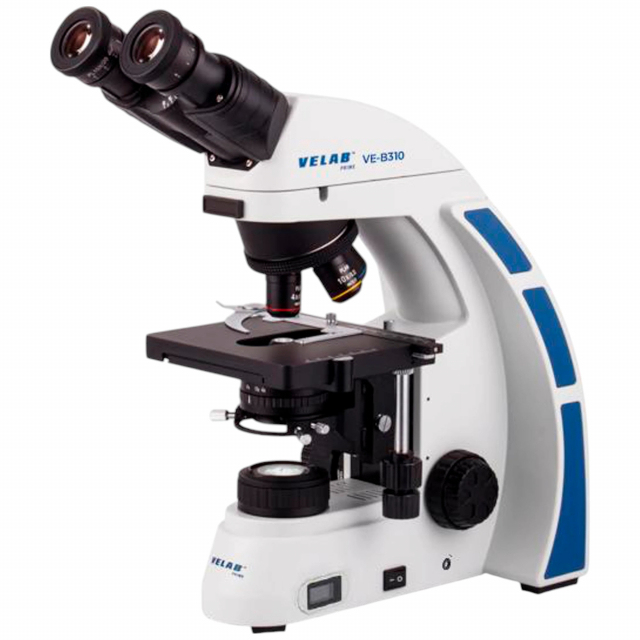

Biological microscope designed for professional use. Ideal for identifying and analyzing biological substances and cultures in microbiology, biology, medicine and pathology.
The VE-B310 is a great tool for research, higher education and routine work in clinical laboratories.
It is highly adaptable to the needs of the user, it has the possibility of a large number of configurations, compatible with a phase contrast kit, dark field, simple polarization and LED fluorescence lighting.
