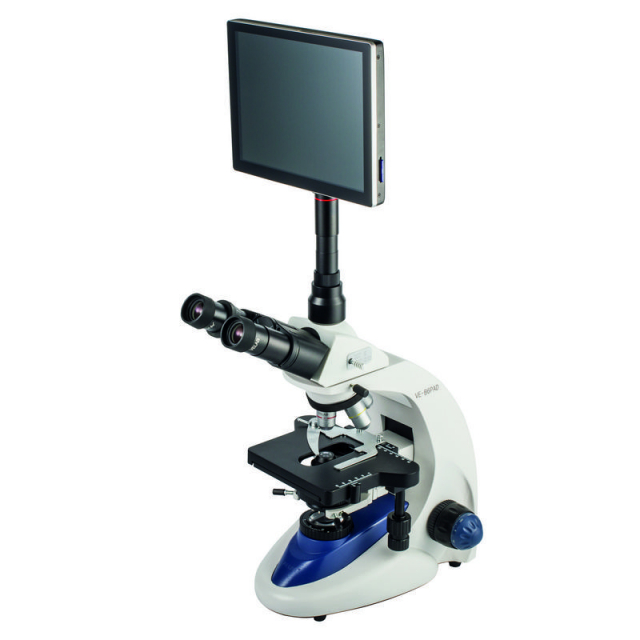

VELAB VE-B6PAD Trinocular Microscope with Integrated 9.7" Tablet

  • Brand VELAB
  • Part # VE-B6PAD
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

VE-B6PAD Includes Only:

  • Power cord.
  • Dust cover.
  • Adapter AC/DC.
  • Operation manual.
  • Blue, green and yellow filters.
  • Immersion oil.
  • SD memory card.
  • Adapter rings Φ 30 and Φ 30.5 mm.
  • 0.5X C-Mount.

The VE-B6PAD is a professional microscope, ideal for research, higher education and routine work in clinical laboratories. Equipped with our SCOPEPAD device, which consists of a 5.0MP digital camera integrated into a completely removable 9.7” tablet with the Android operating system. The VE-B6PAD includes the IMS Camera application which allows to edit and measure captures, as well as IAS Camera for particle counting. It offers an innovative digital solution and can also be configured optionally to be compatible with a phase contrast kit and polarization set.

Features:

  • Diopter adjustment in one eyepiece.
  • Stative, robust, reinforced and easy to transport.
  • Siedentopf type Binocular Head.
  • Lighting with intensity adjustment and field
  • Head inclined at 30 ° and rotatable 360° diaphragm in lamp
  • Interpupillary distance of 48 ~ 75 mm.
  • Stage with vernier, millimeter scale, caliper
  • Objectives with colored rings. and stop with height adjustment.
  • Condenser equipped with adapter for phase contrast kit or polarization set (not included)

Applications:

  • Education: Upper grade levels
  • Research
  • Clinical
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Specifications Microscope
EyepieceWF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HeadHEAD
Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary
distance adjustment between 48 – 75 mm / 1.88” - 2.95”.
NosepieceQuadruple nosepiece with anti-slip grip and click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationKohler LED with intensity control and field diaphragm in the lamp.
Weight24.65 lb / 11.18 kg.
Dimensions12.01” x 14.96” x 20.08” / 305 x 379 x 510 mm.
Power supplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Specifications PAD
ProcessorCPU RK3066 dual core 1.5 Hz.
Screen9.7” touch screen with 1024 x 768p of resolution.
Storage2GB DDR RAM and 32GB of maximum external support.
InterfaceUSB, mini USB and HDMI.
Operating systemAndroid 4.2.
ConectivityWIFI and Bluetooth.
Application- IMS Camera: Edition and measurement.
- IMS Camera: Particle counting.
Power supply110-240V, 50/60 Hz AC adapte
Specifications Camera
Total pixels5.0MP
Image sensor1/2.5” CMOS.
Resolution2592 x 1944p.
White balanceAutomatic/Manual.
Recording systemImage and Video.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Specifications Microscope
EyepieceWF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HeadHEAD
Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary
distance adjustment between 48 – 75 mm / 1.88” - 2.95”.
NosepieceQuadruple nosepiece with anti-slip grip and click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationKohler LED with intensity control and field diaphragm in the lamp.
Weight24.65 lb / 11.18 kg.
Dimensions12.01” x 14.96” x 20.08” / 305 x 379 x 510 mm.
Power supplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Specifications PAD
ProcessorCPU RK3066 dual core 1.5 Hz.
Screen9.7” touch screen with 1024 x 768p of resolution.
Storage2GB DDR RAM and 32GB of maximum external support.
InterfaceUSB, mini USB and HDMI.
Operating systemAndroid 4.2.
ConectivityWIFI and Bluetooth.
Application- IMS Camera: Edition and measurement.
- IMS Camera: Particle counting.
Power supply110-240V, 50/60 Hz AC adapte
Specifications Camera
Total pixels5.0MP
Image sensor1/2.5” CMOS.
Resolution2592 x 1944p.
White balanceAutomatic/Manual.
Recording systemImage and Video.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
