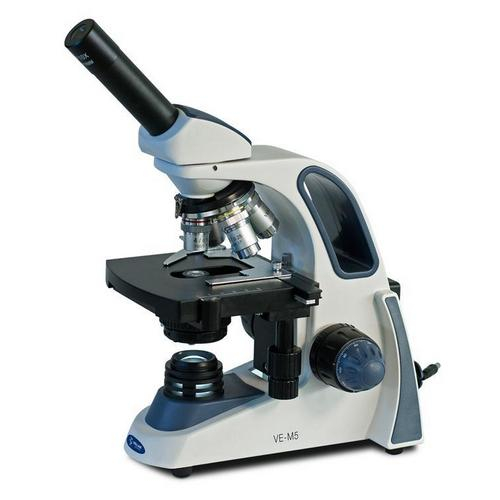

VELAB VE-M5 Biological Monocular Microscope with Quadruple Nose Piece

Type: Quadruple Nose Piece
  • Brand VELAB
  • Part # VE-M5
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: Quadruple Nose Piece

VELAB, VE-M5, Biological Monocular Microscope with Quadruple Nose Piece (Intermediate)

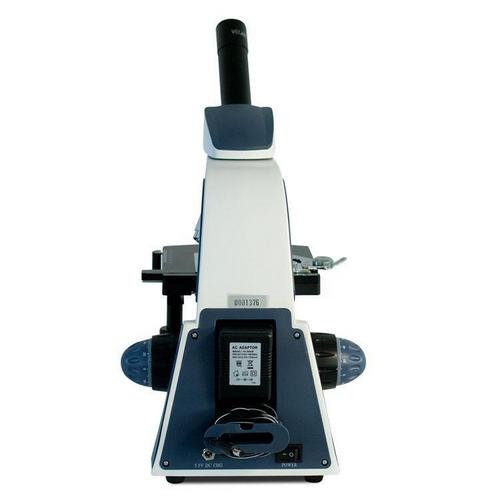

The VE-M5 microscope can fulfill all kinds of basic and advanced procedures. Its area of application is not limited to education, it can be applied in clinical laboratories for observation of blood samples, parasite identification and urinary sediment sample observation, due to its immersion objective. Includes a rear cable-winding reel for the power adapter.

VE-M5 Includes Only:

  • AC/DC adapter.
  • Adapter cable reel device.
  • Blue filter.
  • Dust cover.
  • Immersion oil.

Features:

  • Stationary, robust and reinforced body.
  • Monocular head inclined at 45° and rotatable 360°
  • LED lighting with intensity adjustment.
  • Non-slip lenses with metallic finish.
  • Compact, lightweight and easy to transport.
  • Finished in epoxy paint.
  • Colored objevtive rings for easy identification.
  • Stage with clamps and stop with height adjustment.

Applications:

  • Education
  • Clinical
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
EyepieceWF 10X/18 mm with block screw.
HeadMonocular Head, 45 degree inclined, 360 degree rotatable.
NosepieceQuadruple Nosepiece with click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-layer Stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw.
DiaphragmIris type with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationLED with intensity control
Weight12.32 lb / 5.58kg
Dimensions10.04" x 12.99" x 12.99" / 255 x 329 x 329 mm
Power SupplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
EyepieceWF 10X/18 mm with block screw.
HeadMonocular Head, 45 degree inclined, 360 degree rotatable.
NosepieceQuadruple Nosepiece with click-stops.
Objectives4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageTwo-layer Stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CondenserAbbe, N.A. 1.25 with height adjustment screw.
DiaphragmIris type with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationLED with intensity control
Weight12.32 lb / 5.58kg
Dimensions10.04" x 12.99" x 12.99" / 255 x 329 x 329 mm
Power SupplyThree 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
