VELAB VE-M5D Biological Monocular Microscope with 3.0 MP Camera

Type: 3.0 MP Camera
  • Brand VELAB
  • Part # VE-M5D
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: 3.0 MP Camera

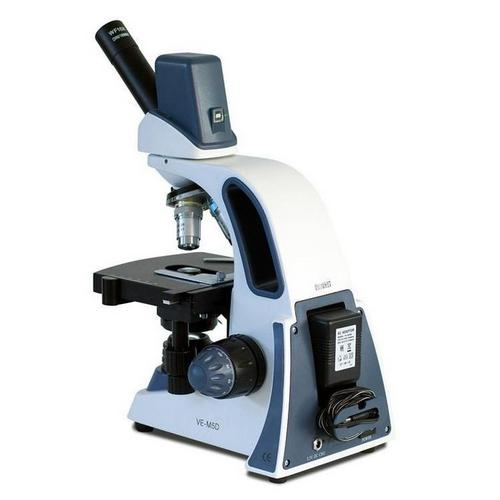

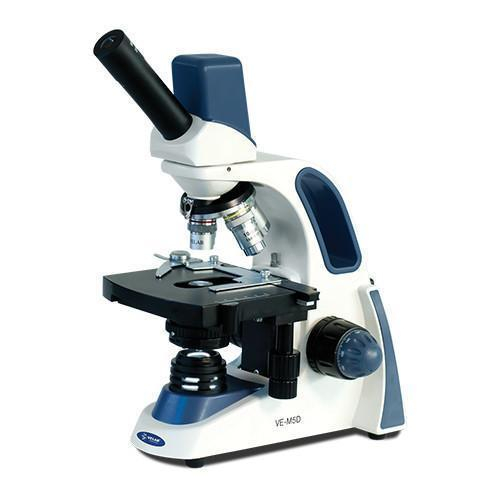

VELAB, VE-M5D, Biological Monocular Microscope with 3.0 MP Integrated Digital Camera

VE-M5D Includes Only:

  • AC/DC adapter.
  • Adapter cable reel device.
  • Blue filter.
  • Dust cover.
  • Immersion oil.
  • Operation manual.
  • Software CD.
  • USB cable.

The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Eyepiece:WF 10X/18 mm with block screw.
Head:Monocular Head, 45 degree inclined, 360 degree rotatable and integrated 1.3 MP digital camera.
Nosepiece:Quadruple Nosepiece with click-stops.
Objectives:4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
Stand:Stative, robust and reinforced with epoxy paint finish.
Stage:Two-Layer Stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
Condenser:Abbe, N.A. 1.25 with height adjustment screw.
Diaphragm:Iris with filter holder.
Focusing:Coarse and fine anti-slip control knob with tension adjustment.
Illumination:LED with intensity control.
Power Supply:Three 1.5V AA rechargeable batteries (not included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Dimensions:7.99" x 13.77" x 9.88"
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Eyepiece:WF 10X/18 mm with block screw.
Head:Monocular Head, 45 degree inclined, 360 degree rotatable and integrated 1.3 MP digital camera.
Nosepiece:Quadruple Nosepiece with click-stops.
Objectives:4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
Stand:Stative, robust and reinforced with epoxy paint finish.
Stage:Two-Layer Stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
Condenser:Abbe, N.A. 1.25 with height adjustment screw.
Diaphragm:Iris with filter holder.
Focusing:Coarse and fine anti-slip control knob with tension adjustment.
Illumination:LED with intensity control.
Power Supply:Three 1.5V AA rechargeable batteries (not included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
Dimensions:7.99" x 13.77" x 9.88"
