Welch Vacuum 1376K-06 Major Repair Kit with Mechanical Seal for DuoSeal 1376 Pump

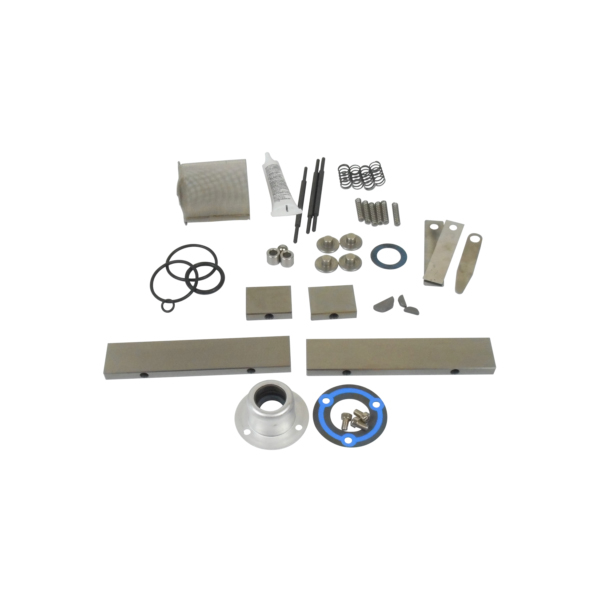

1376K-06 Includes Only:

• (1) Mechanical Shaft Seal Kit. 3/4" CAT. No.14010 (#1 on the picture.)
• (1) Gasket. Intake Chamber Cover, (#2 on the picture.)
• (1) Intake Screen, (#3 on the picture.)
• (1) Thrust Washer, (#4 on the picture.)
• (2) Woodruff Key, (#5 on the picture.)
• (2) Woodruff Key, (#6 on the picture.)
• (2) Gasket, Oil Case, (#7 on the picture.)
• (1) O-Ring, (#8 on the picture.)
• (1) Pressure Release Valve, (#9 on the picture.)
• (1) Ball Bearing, (#10 on the picture.)
• (1) Exhaust Valve. Lower, (#11 on the picture.)
• (1) Exhaust Valve. Upper (#12 on the picture.)
• (2) Vane. Small, (#13 on the picture.)
• (3) Spring Holder (#14 on the picture.)
• (6) Spring for Vanes, (#15 on the picture.)
• (2) Vane. Large, (#16 on the picture.)
• (4) Valve Spring, (#17 on the picture.)
• (4) Valve for Block, (#18 on the picture.)
• (2) Spacer for Valve Block, (#19 on the picture.)

Enables complete refurbishment of DuoSeal pump 1376B-01. Includes gaskets, seals, valves, o-rings, springs, vanes (2 large, 2 small), and mechanical shaft seal. All parts are Welch Original equipment with enhanced chemical resistance - manufactured to design specification for top pump durability and performance.
