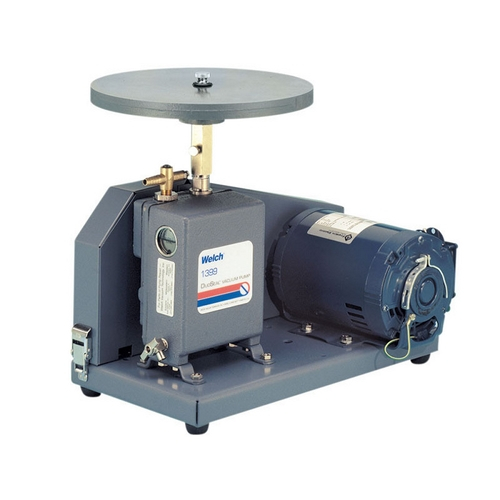

DuoSeal 115V 1 Ph Vacuum Pump with North America Plug

DuoSeal Vacuum Pumps are known for their ruggedness world-wide. These pumps have large oil reservoirs to dilute contaminants. Low pump rpm to reduces friction and wear while minimizing reservoir temperature to lessen chemical reactivity.

Features

High contamination tolerance
Ultimate vacuum <0.001 Torr
Low RPM for long service life

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Supplies

Optional Accessories

Reviews

Applications	Vacuum Ovens, Glove Boxes, General Laboratory Vacuum
Type	Belt-Drive Vacuum Pump
Free Air Displacement cfm (l/min.) @60Hz	1.2(35)
Ultimate Pressure	1.5 x 10-2(0.019)
Pump RPM	750
Oil Capacity	0.5(0.47)
Motor Horsepower (watts)	1/3(250)
Adjustable Vac. / Gas Ballast	No
Tubing Needed	7/16(11)
Intake Thread NPT	3/4-20
Exhaust Thread NPT	3/4/20
Overall Dimensions LxWxH in. (cm)	17x9x10 (43.x22.9x25.42)

Product Details

Applications	Vacuum Ovens, Glove Boxes, General Laboratory Vacuum
Type	Belt-Drive Vacuum Pump
Free Air Displacement cfm (l/min.) @60Hz	1.2(35)
Ultimate Pressure	1.5 x 10-2(0.019)
Pump RPM	750
Oil Capacity	0.5(0.47)
Motor Horsepower (watts)	1/3(250)
Adjustable Vac. / Gas Ballast	No
Tubing Needed	7/16(11)
Intake Thread NPT	3/4-20
Exhaust Thread NPT	3/4/20
Overall Dimensions LxWxH in. (cm)	17x9x10 (43.x22.9x25.42)

Supplies

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
