Welch Vacuum 1402K-47 Major Repair Kit for 1402B-46 Pump

1402K-47 Includes Only:

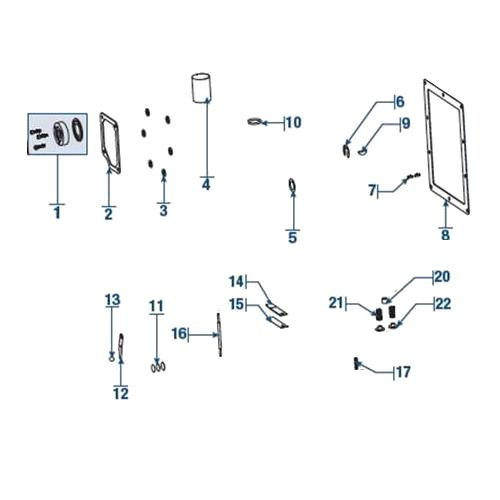

• (1) Mechanical Shaft Seal Kit, 3/4" CAT.1401D-01 (#1 on the picture.)
• (1) Gasket Intake Chamber Cover, (#2 on the picture.)
• (6) Copper Washer, (#3 on the picture.)
• (1) Intake Screen, (#4 on the picture.)
• (1) Thrust Washer, (#5 on the picture.)
• (1) Rotor Clip for Shaft, (#6 on the picture.)
• (2) Woodruff Key, (#7 on the picture.)
• (1) Gasket, Oil Case, (#8 on the picture.)
• (2) Woodruff Key, (#9 on the picture.)
• (1) O-Ring, (#10 on the picture.)
• (3) Thrust Disk, (#11 on the picture.)
• (1) Pressure Release Valve (#12 on the picture.)
• (1) Ball Bearing, (#13 on the picture.)
• (1) Exhaust valve, Upper (#14 on the picture.)
• (1) Exhaust Valve, Lower, (#15 on the picture.)
• (3) Spring Holder, (#16 on the picture.)
• (6) Vane Spring, (#17 on the picture.)
• (1) Spacer for Valve Block, (#20 on the picture.)
• (2) Valve Spring, (#21 on the picture.)
• (2) Varve for Block, (#22 on the picture.)

Enables refurbishment of Refrigeration pump 1402B-46. Includes gaskets, seals, valves, o-rings, springs, and mechanical shaft seal. Does not include vanes. All parts are Welch Original equipment - manufactured to design specification for top pump durability and performance.
