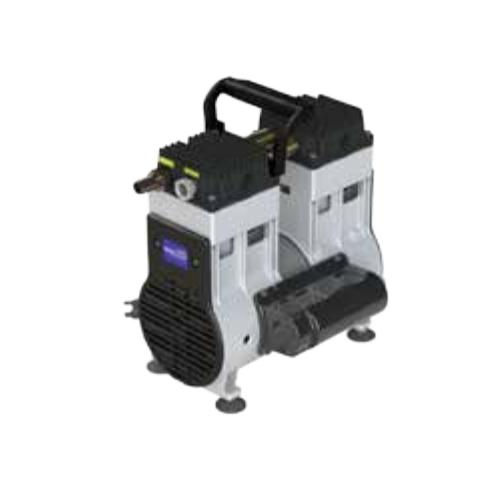

Welch Vacuum 2595B-01 – 2595 Wob-L Dry Pump, 115V 60 Hz, 1 Ph

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Welch, 2595B-01, 2595 Wob-L Dry Pump, 115V 60 Hz, 1 Ph

Features

Oil-free operation for reduced maintenance. These WOB-L piston pumps have a high water vapor tolerance.

Applications

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Free Air Displacement cfm (l/min.) at 60Hz	10.6(300)
Free Air Displacement m³ (l/min.) at 50Hz	15(250)
Ult. Vac. Pressure, torr(mbar)	60(80)
Max Pressure PSIG(pascal)	-
Maximum Vacuum, in. Hg	27.6
Mechanism	Piston
Type of Duty	Standard
Motor Horsepower(watts)	1/3(250)
Tubing Needed, I.D. in.(mm)	5/8(16)
Inlet Connection	-
Intake/Exhaust Thread NPT	1/2
Weight lbs.(kg)	22.5(10.3)
Overall Dimensions L x W x H in.(cm)	13.3x7.8x12.8 (34x20x33)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Free Air Displacement cfm (l/min.) at 60Hz	10.6(300)
Free Air Displacement m³ (l/min.) at 50Hz	15(250)
Ult. Vac. Pressure, torr(mbar)	60(80)
Max Pressure PSIG(pascal)	-
Maximum Vacuum, in. Hg	27.6
Mechanism	Piston
Type of Duty	Standard
Motor Horsepower(watts)	1/3(250)
Tubing Needed, I.D. in.(mm)	5/8(16)
Inlet Connection	-
Intake/Exhaust Thread NPT	1/2
Weight lbs.(kg)	22.5(10.3)
Overall Dimensions L x W x H in.(cm)	13.3x7.8x12.8 (34x20x33)

Note: Please read description carefully. Do not base your order on the picture presented.
