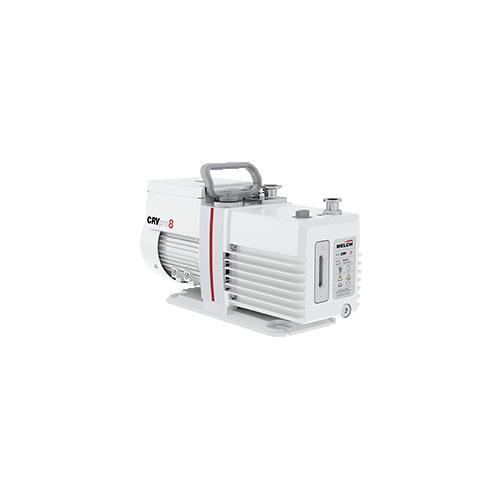

Welch Vacuum 3086E-01 CRVpro 8 Direct Drive Rotary Vane Vacuum Pump

L/min: 133 L/min
  • Brand Welch Vacuum
  • Part # 3086E-01
  • Model # CRVpro 8
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

L/min:
L/min: 133 L/min

Welch, 3086E-01, CRVpro 8 Direct Drive Rotary Vane Vacuum Pump with Explosion Proof Motor, cUL Listed, No Switch or Cord

Features:

  • Runs 10°C cooler than comparable pumps.
  • Slows corrosion.
  • Has a 40% larger oil capacity than comparable pumps.
  • Dilutes aggressive chemicals.
  • Has a chemical resistant coating in the oil case and pump module.
  • Protects non-moving parts.
  • Suitable applications include freeze drying, degassing, vacuum ovens and concentrators.

The CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Free Air Displacement at 60 Hz, cfm (L/min)5.6 (158)
Free Air Displacement at 50 Hz, m³/hr (L/min)8 (133)
Ultimate Pressure, torr (mbar)5 x 10^-4 (4 x 10^-4)
Noise Level, dBA50
Motor Speed, RPM, at60Hz, at50Hz1740 (1450)
Motor Power, HP (kW)0.4 (0.5)
Oil Capacity, mL1000
Connection FlangesNW 16
Weight, lbs (kg)49.6 (22.5)
Dimensions, LxWxH, in (mm)18.2 x 6.1 x 9.1 (463 x 157 x 230)
Product Details
Free Air Displacement at 60 Hz, cfm (L/min)5.6 (158)
Free Air Displacement at 50 Hz, m³/hr (L/min)8 (133)
Ultimate Pressure, torr (mbar)5 x 10^-4 (4 x 10^-4)
Noise Level, dBA50
Motor Speed, RPM, at60Hz, at50Hz1740 (1450)
Motor Power, HP (kW)0.4 (0.5)
Oil Capacity, mL1000
Connection FlangesNW 16
Weight, lbs (kg)49.6 (22.5)
Dimensions, LxWxH, in (mm)18.2 x 6.1 x 9.1 (463 x 157 x 230)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
