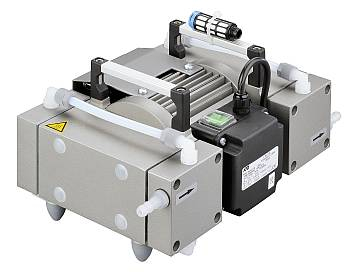

Welch Vacuum 411543 MP 201 T 33 l/min 1.5 Torr 1 Phase Standard Duty Diaphragm Pump

Plug Type: European & UK
  • Brand Welch Vacuum
  • Part # 411543
  • Model # MP 201 T
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Plug Type:
Plug Type: European & UK

MP 201 T 33 l/min 1.5 Torr 1 Phase Standard Duty Diaphragm Pump with CE Mark & European/UK Plug, 220V, 50/60Hz

Applications:

  • Aqueous Vacuum Filtration
  • Air / Gas Sampling
  • Vacuum Chambers
  • Backing Pumps for Various Turbo Molecular Pumps
  • Analytical Technology
  • Mass Spectrometer
  • Vacuum Chucking
  • Parts Handling, Pick and Place Conveyor Lines

Note:

Every pump is supplied with ON/OFF switch and internal protective thermal switch for the motor, carry handle and vibration isolating feet and Exhaust silencer. Comes pre-assembled.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Number of heads / stages4 / 3
Free Air Displacement
m3/h (L/min)@50Hz2.0 (33)
Ultimate pressure, mbar (torr)2 (1.5)
Maximum Vacuum, in. Hg29.9
IN / Ex hose connectorDN 8
Tubing Needed, I.D. mm (in.)8 (0.32)
Intake (Exhaust) Thread NPT1/4 (1/4)
Sound level. dB< (A)45
Motor Power, watts (HP)90 (0.12)
Type of motor protection, IP54
Weight kg (lbs.)10.3 (22.7)
Overall Dimensions
L cm (in.)20 (7.9)
Wcm (in.)26 (10.2)
H cmfin.)15 (5.9)
Ship Weight, kg (lbs.)13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)41 x 26 x 25 (16.1 x 10.2 x 9.8)
Product Details
Number of heads / stages4 / 3
Free Air Displacement
m3/h (L/min)@50Hz2.0 (33)
Ultimate pressure, mbar (torr)2 (1.5)
Maximum Vacuum, in. Hg29.9
IN / Ex hose connectorDN 8
Tubing Needed, I.D. mm (in.)8 (0.32)
Intake (Exhaust) Thread NPT1/4 (1/4)
Sound level. dB< (A)45
Motor Power, watts (HP)90 (0.12)
Type of motor protection, IP54
Weight kg (lbs.)10.3 (22.7)
Overall Dimensions
L cm (in.)20 (7.9)
Wcm (in.)26 (10.2)
H cmfin.)15 (5.9)
Ship Weight, kg (lbs.)13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)41 x 26 x 25 (16.1 x 10.2 x 9.8)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
