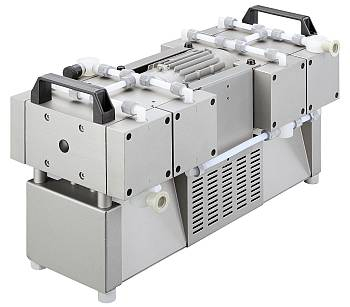

Welch Vacuum 411782-01 MP 1801 Z 201 l/min 6 Torr Standard Duty Diaphragm Pump with US Plug, 115V - 60Hz

Plug Type: US
  • Brand Welch Vacuum
  • Part # 411782-01
  • Model # MP 1801 Z
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Plug Type:
Plug Type: US

MP 1801 Z 201 l/min 6 Torr Standard Duty Diaphragm Pump with US Plug, 115V - 60Hz

Applications:

  • General Vacuum Work
  • Air / Gas Sampling
  • Fast Evacuation of Large Chamber Volumes
  • Backing Pump for Various Turbo Pumps
  • Drying Chambers
  • Vacuum Chambers
  • Degassing
  • Isolation Vacuum

Note:

Every pump is supplied with ON/OFF switch and internal protective thermal switch for the motor, carry handle and vibration isolating feet and Exhaust silencer. Comes pre-assembled.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Number of heads / stages8/2
Free Air Displacement
m3/h (L/min)@50Hz12 (201)
cfm (L/min)@60Hz7.84 (222)
Ultimate pressure, mbar (torr)8 (6)
Maximum Vacuum, in. Hg29.7
IN / Exhose connectorDN 16 KF
Tubing Needed, I.D. mm (in.)hose connector available
Sound level, dB (A)47
Motor Power, watts (HP)370/440 (0.5/0.6)
Type of motor protection, IP54
Weight. kg (lbs.)32.8 (72.3)
Overall Dimensions
L cm (m.) 54 (21.3)
W cm (in.)30 (11.8)
H cm (in.)24 (9.4
Ship Weight, kg (lbs.)40.1 (88.2)
Shipping Carton Dimensions L x W x H cm (in.)60 x 40 x 41 (23.6 x 15.8 x 16.1)
Product Details
Number of heads / stages8/2
Free Air Displacement
m3/h (L/min)@50Hz12 (201)
cfm (L/min)@60Hz7.84 (222)
Ultimate pressure, mbar (torr)8 (6)
Maximum Vacuum, in. Hg29.7
IN / Exhose connectorDN 16 KF
Tubing Needed, I.D. mm (in.)hose connector available
Sound level, dB (A)47
Motor Power, watts (HP)370/440 (0.5/0.6)
Type of motor protection, IP54
Weight. kg (lbs.)32.8 (72.3)
Overall Dimensions
L cm (m.) 54 (21.3)
W cm (in.)30 (11.8)
H cm (in.)24 (9.4
Ship Weight, kg (lbs.)40.1 (88.2)
Shipping Carton Dimensions L x W x H cm (in.)60 x 40 x 41 (23.6 x 15.8 x 16.1)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
