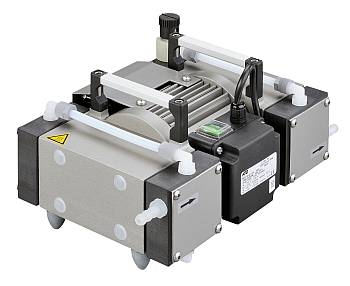

Welch Vacuum 412543-01 MPC 201 T 36 l/min 2 Torr 1 Phase Chemical Duty Diaphragm PTFE Pump

  • Brand Welch Vacuum
  • Part # 412543-01
  • Model # MPC 201 T
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Choose Options: Show more

MPC 201 T 36 l/min 2 Torr 1 Phase Chemical Duty Diaphragm PTFE Pump with CE Mark & US Plug, 115V - 50/60 Hz

Applications:

  • Rotary Evaporator
  • Vacuum Oven
  • Vacuum Filtration
  • General Vacuum Work
  • Gel Dryer
  • Vacuum Concentrator
  • Distillation / Evaporation
  • Desiccation / Degassing
  • Solid Phase Extraction
  • Replace Water Jet Pumps

Note:

Every pump is supplied with ON/OFF switch and internal protective thermal switch for the motor, carry handle and vibration isolating feet. Comes pre-assembled.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Number of heads / stages4/3
Free Air Displacement
m3/h (L/min)@50Hz2.0 (33)
cfm (L/min)@60Hz1.3 (36)
Ultimate pressure, mbar (torr)2 (1.5)
Maximum Vacuum, in. Hg29.9
IN / Ex hose connectorDN8
Tubing Needed, I.D. mm (in.)8 (0.32)
Intake (Exhaust) Thread NPT1/4 (1/4)
Sound level. dB< (A)45
Motor Power, watts (HP)90 (0.12)
Type of motor protection, IP54
Weight kg (lbs.)10.3 (22.7)
Overall Dimensions
L cm(in.)20 (7.9)
Wcm (in.)26 (10.2)
H cmfin.)15 (5.9)
Ship Weight, kg (lbs.)13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)41 x 26 x 25 (16.1 x 10.2 x 9.8)
Product Details
Number of heads / stages4/3
Free Air Displacement
m3/h (L/min)@50Hz2.0 (33)
cfm (L/min)@60Hz1.3 (36)
Ultimate pressure, mbar (torr)2 (1.5)
Maximum Vacuum, in. Hg29.9
IN / Ex hose connectorDN8
Tubing Needed, I.D. mm (in.)8 (0.32)
Intake (Exhaust) Thread NPT1/4 (1/4)
Sound level. dB< (A)45
Motor Power, watts (HP)90 (0.12)
Type of motor protection, IP54
Weight kg (lbs.)10.3 (22.7)
Overall Dimensions
L cm(in.)20 (7.9)
Wcm (in.)26 (10.2)
H cmfin.)15 (5.9)
Ship Weight, kg (lbs.)13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)41 x 26 x 25 (16.1 x 10.2 x 9.8)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
