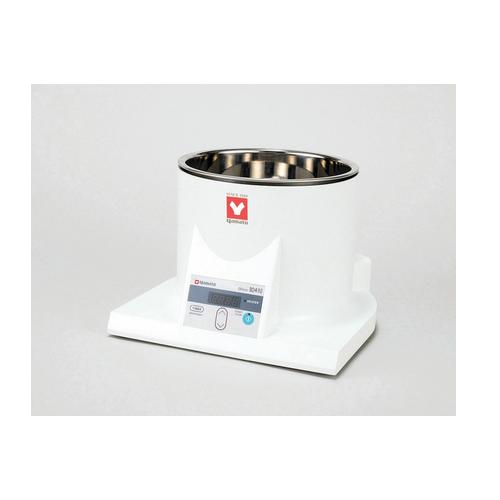

BO-410, Economical Oil Bath

Features with all optinal accessories:

Digital temperature setting by keys.
Removable oil tank for convenient cleaning and changing of oil.
Heater situated outside the water tank.
Exclusive connection for bath operational setting function with RE601/801 rotary evaporator.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Model	BO410
Operating temp. range	Room temp. +5 to 180°C
Temp. control accuracy	±2°C (at agitation)
Temp. control system	PlD control by microprocessor
Temp. setting / display method	Digital setting by keys
Operation function	Keypad lock, RE signal transmission and reception, Power failure recovery, Calibration off-set
Heater	1kW ) 200V), 1.44kW (240V)
Sensor	K thermocouple
Safety device	Bath protection cover (ABS heat-resistant resin)
Safety device	Self-diagnostic function (Automatic overheat prevention, Temperature sensor error, Triac short circuit, Heater disconnection, Main relay failure), Circuit protector, Thermal fuse, Micro switch to detect heating without oil
Interlocking control function	RE601/801 signal transmission and reception (Constant operation, Heat retention operation, Stop), Error report to RE601/801
Internal dimensions (WxH mm)	240x122mm
External dimensions (W x D x H mm)	340x349x231mm
Remarks(dimensions)	Tank maximum inner diameter 240x bottom diameter 165x D122mm approx.4L
Power Source	AC200 to 240V
Weight	5.5kg

Model	BO410
Operating temp. range	Room temp. +5 to 180°C
Temp. control accuracy	±2°C (at agitation)
Temp. control system	PlD control by microprocessor
Temp. setting / display method	Digital setting by keys
Operation function	Keypad lock, RE signal transmission and reception, Power failure recovery, Calibration off-set
Heater	1kW ) 200V), 1.44kW (240V)
Sensor	K thermocouple
Safety device	Bath protection cover (ABS heat-resistant resin)
Safety device	Self-diagnostic function (Automatic overheat prevention, Temperature sensor error, Triac short circuit, Heater disconnection, Main relay failure), Circuit protector, Thermal fuse, Micro switch to detect heating without oil
Interlocking control function	RE601/801 signal transmission and reception (Constant operation, Heat retention operation, Stop), Error report to RE601/801
Internal dimensions (WxH mm)	240x122mm
External dimensions (W x D x H mm)	340x349x231mm
Remarks(dimensions)	Tank maximum inner diameter 240x bottom diameter 165x D122mm approx.4L
Power Source	AC200 to 240V
Weight	5.5kg

Note: Please read description carefully. Do not base your order on the picture presented.
