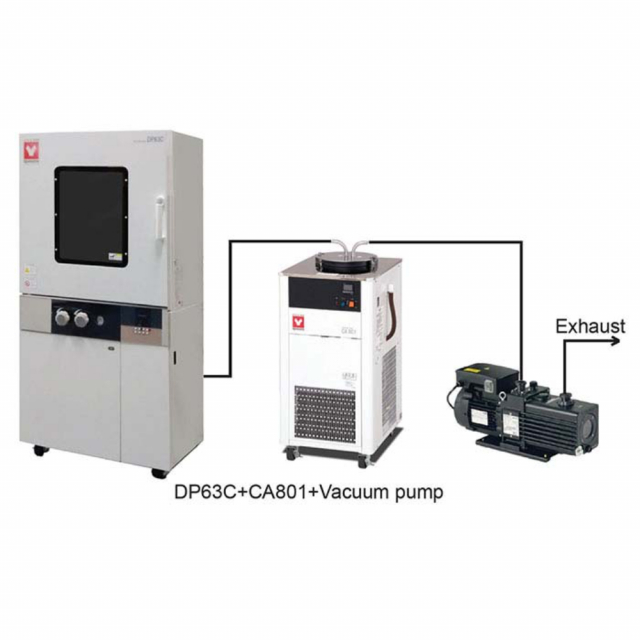

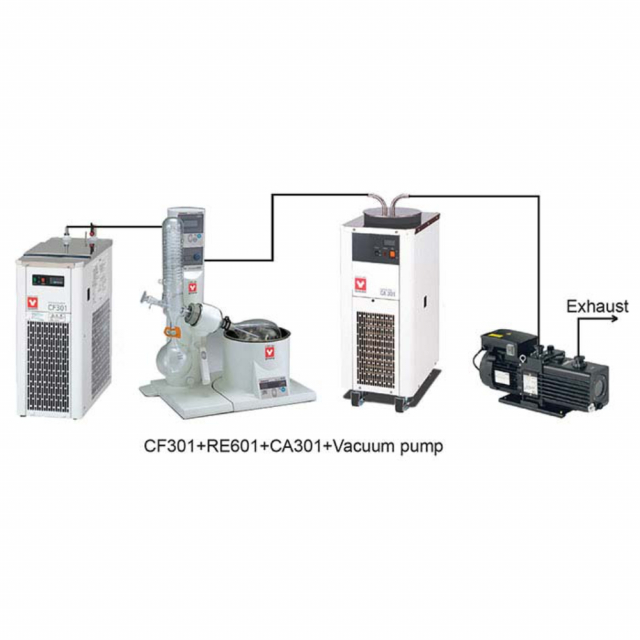

Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump

Features:

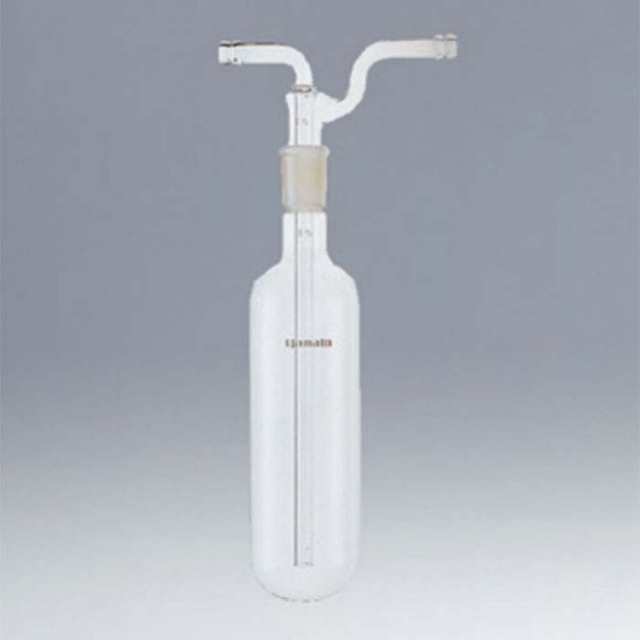

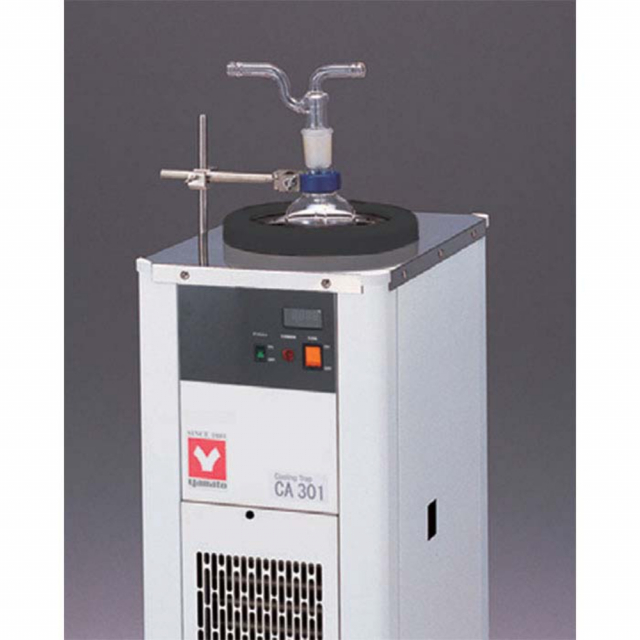

Excellent choice to extract acid and natural solvents with the optional glass condenser
Efficiently reduces vapor inhalation amount to the vacuum pump
Can be used as a low temperature tank as well as pre-cooling tank
Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
Space saving and highly mobile on wheels

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Method

Direct trap or Glass trap (optional)

Dehumidifying Capacity

Max. 0.9kg (Water type liquid)

Max. Low Temperature

-45°C

Refrigerator

Air cooling, 400W

Refrigerant

R404A

Cooling Coil

ID ø90 mm SUS304

Lid

OD ø17.6 mm with nozzle, SUS304

Bath Shape / Material

Cylindrical / SUS304

Ambient Temperature Range

5~35°C

Temperature Display

7 segment LED

Temperature Sensor

Platinum resistance temperature detector Pt100Ω

Defrosting Mechanism

N/A

Safety Device

Electric leakage breaker with over current protection, refrigeration overload relay

Sink Dimensions

I.D.153 x H235 mm

Internal Capacity

~4L (Liquid 3L)

Power Source 50/60Hz

AC115V 4.3A
AC220V 2.3A

External Dimension WxDxH

345 x 475 x 726 mm / 13.58" x 18.70" x 28.58"

Weight

~47kg / 103.61 lb.

Product Details

Method

Direct trap or Glass trap (optional)

Dehumidifying Capacity

Max. 0.9kg (Water type liquid)

Max. Low Temperature

-45°C

Refrigerator

Air cooling, 400W

Refrigerant

R404A

Cooling Coil

ID ø90 mm SUS304

Lid

OD ø17.6 mm with nozzle, SUS304

Bath Shape / Material

Cylindrical / SUS304

Ambient Temperature Range

5~35°C

Temperature Display

7 segment LED

Temperature Sensor

Platinum resistance temperature detector Pt100Ω

Defrosting Mechanism

N/A

Safety Device

Electric leakage breaker with over current protection, refrigeration overload relay

Sink Dimensions

I.D.153 x H235 mm

Internal Capacity

~4L (Liquid 3L)

Power Source 50/60Hz

AC115V 4.3A
AC220V 2.3A

External Dimension WxDxH

345 x 475 x 726 mm / 13.58" x 18.70" x 28.58"

Weight

~47kg / 103.61 lb.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
