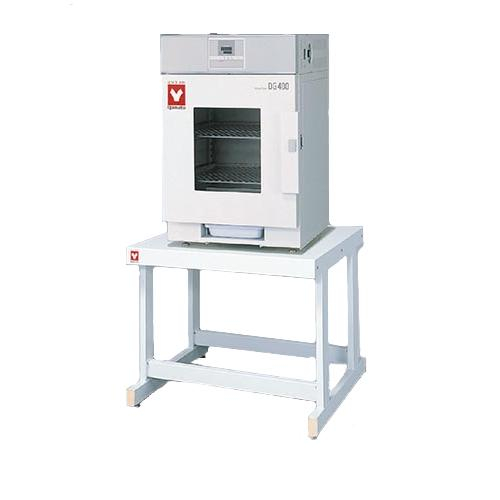

Yamato Scientific DG-400C – Natural Convection Oven Internal Capacity: 92 L

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Natural convection oven for glassware drying.

Features:

Large window for easy observation
Can be used to store instruments after drying
Highly efficient heat insulation material for both internal and external structure
Adjustable foot for stability on uneven floors
Equipped with stainless steel pipe heater and water receiving plate at the bottom
Stainless steel interior, easy to clean and highly resistant to corrosion
Dial setting and digital display of temperature control and timer
Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure
Accurate temperature control may not be possible with heat generating samples in the chamber

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

System	Natural convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Heater	SUS pipe heater 1.0kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm x 2
Suction Port	I.D. 30mm x 2
Internal Dimensions WxDxH	450x450x450 mm
External Dimensions WxDxH	504x562x788 mm
Internal Capacity	92L
Weight	~45kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H300mm
Shelf Plate Load	15kg/pc.
Shelf Rest / Pitch	10 steps / 30mm
Power Source	AC115V (with plug)
Shelf Plate / Bracket	2pcs. / 4pcs.
Water Receiving Plate	1pc.

System	Natural convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Heater	SUS pipe heater 1.0kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm x 2
Suction Port	I.D. 30mm x 2
Internal Dimensions WxDxH	450x450x450 mm
External Dimensions WxDxH	504x562x788 mm
Internal Capacity	92L
Weight	~45kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H300mm
Shelf Plate Load	15kg/pc.
Shelf Rest / Pitch	10 steps / 30mm
Power Source	AC115V (with plug)
Shelf Plate / Bracket	2pcs. / 4pcs.
Water Receiving Plate	1pc.

Note: Please read description carefully. Do not base your order on the picture presented.
