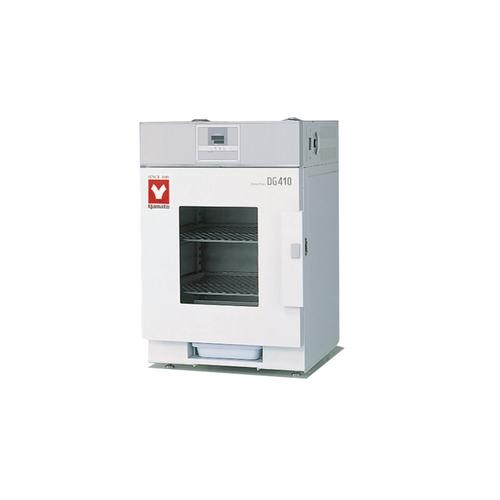

Yamato Scientific DG-410C – DG 92L 220V Natural Convection Drying Oven Internal Capacity: 92L, Power Supply: 220V, Sterilization Lamp: no

GET $5 OFF ON YOUR FIRST PURCHASE

Help

Quote Cart

My Cart

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Internal Capacity:: Internal Capacity: 92L
Power Supply:: Power Supply: 220V
Sterilization Lamp:: Sterilization Lamp: no

Operation and functions:

Large window for easy observation
Can be used to store instruments after drying
Highly efficient heat insulation material for both internal and external structure
Adjustable foot for stability on uneven floors
Equipped with stainless steel pipe heater and water receiving plate at the bottom
Stainless steel interior, easy to clean and highly resistant to corrosion
Installed with filter at air in-take port, exhaust fan and germicidal lamp for fast drying
Dial setting and digital display of temperature control and timer

Note: Accurate temperature control may not be possible with heat generating samples in the chamber

Safety features:

Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Method	Natural convection
Operating temp. range	R +5 to 70 degC
Interior material	Stainless steel
Exterior	Cold rolled steel plate with chemical proofing coating
Heater	Stainless steel pipe heater
Heater	1.0kW
Observation window (WxHmm)	250x300
Exhaust port	I.D. 34mmx2
Suction port	I.D. 30mmx2
Germicidal lamp	-
Temp. control	PID control
Temp. setting	Use specialized function menu key and UP/DOWN key to set
Temp. display	Measured temp. display: Green 4-digit LED digital display
Temp. display	Setting temp. display: Red 4-digit LED digital display
Timer	1min-99 hr 59 min and 100 hr-999 hr 50 min (Attached with timing wait function)
Operation function	Fixed temp., Quick auto stop, Auto start, Auto stop operation
Additional function	Deviation correction, Key lock, Power outage compensation
Heater circuit control	SSR driving
Sensor	Temp. controller: K thermocouple , Overheat protection: Liquid-expansion temp. controller
Safety device	Self-diagnosis (Abnormal temp. sensing, Auto overheat prevention, SSR short circuit), Key lock, Independent overheat protector, Overcurrent ELB
Shelf plate with standard load	15kg / piece
Shelf support step number/pitch	10 steps / 30mm
Shelf plate	Stainless punching metal
Shelf rest	2 pcs
Shelf bracket	4 pcs
Water pan	1 pc
Optional Stand	ON61C
Optional Others	Shelf plate (1 plate with 2 rests)
Internal dimensions (WxDxH mm)	450x450x450mm
External dimension (WxDxH mm)	504x562x788mm
Remarks(dimensions)	92L
Power Source	AC220V 5A Single-phase
Weight	45kg

Product Details

Method	Natural convection
Operating temp. range	R +5 to 70 degC
Interior material	Stainless steel
Exterior	Cold rolled steel plate with chemical proofing coating
Heater	Stainless steel pipe heater
Heater	1.0kW
Observation window (WxHmm)	250x300
Exhaust port	I.D. 34mmx2
Suction port	I.D. 30mmx2
Germicidal lamp	-
Temp. control	PID control
Temp. setting	Use specialized function menu key and UP/DOWN key to set
Temp. display	Measured temp. display: Green 4-digit LED digital display
Temp. display	Setting temp. display: Red 4-digit LED digital display
Timer	1min-99 hr 59 min and 100 hr-999 hr 50 min (Attached with timing wait function)
Operation function	Fixed temp., Quick auto stop, Auto start, Auto stop operation
Additional function	Deviation correction, Key lock, Power outage compensation
Heater circuit control	SSR driving
Sensor	Temp. controller: K thermocouple , Overheat protection: Liquid-expansion temp. controller
Safety device	Self-diagnosis (Abnormal temp. sensing, Auto overheat prevention, SSR short circuit), Key lock, Independent overheat protector, Overcurrent ELB
Shelf plate with standard load	15kg / piece
Shelf support step number/pitch	10 steps / 30mm
Shelf plate	Stainless punching metal
Shelf rest	2 pcs
Shelf bracket	4 pcs
Water pan	1 pc
Optional Stand	ON61C
Optional Others	Shelf plate (1 plate with 2 rests)
Internal dimensions (WxDxH mm)	450x450x450mm
External dimension (WxDxH mm)	504x562x788mm
Remarks(dimensions)	92L
Power Source	AC220V 5A Single-phase
Weight	45kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
