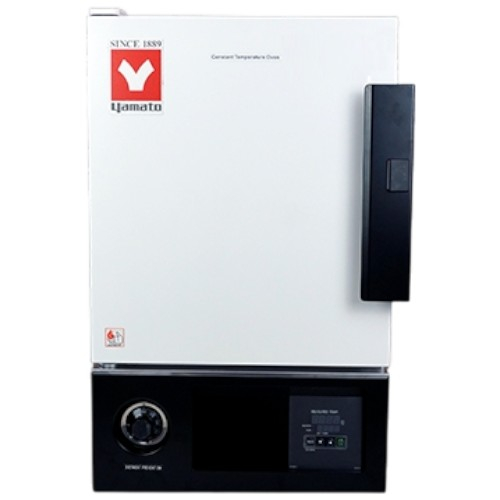

Yamato Scientific DKL-301C – DKL Series Forced Convection Oven, 27L, 115V Capacity (L): 27, Power Supply (V): 115

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

DKL-301C Includes Only:

Features:

Performance and functions
- Fixed temperature, Quick auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Settings can be made digitally with the dedicated operation menu keys or the arrow keys
- Calibration offset as auxiliary function
Safety features
- Self-diagnostic functions, MCB with overcurrent protector, hydraulic standalone overheat prevention device

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 260°C)
Temp. Distribution Accuracy	±2.5°C (at 260°C)
Temperature rise time	~90min (at room temp. ~260°C)
Interior Material	Stainless Steel (SUS430)
Exterior Material	Steel plate SPCC (powder coating)
Heat Insulating Material	Glass wool
Heater	SUS pipe heater
Heater	0.8kW
Fan motor	Sirocco fan 10W
Cable Port	30 mm l.D.x1 pc. (right side)
Exhaust Port	30 mm l.D.x2 pcs. (top)
Temp. Controller	PLD control by a microprocessor
Temp. Setting Method	Digital setting by arrow key
Operation functions	Fixed temperature, Quick auto-stop, Auto stop, Auto start
Additional functions	Calibration offset function
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self-diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an overcurrent protector, hydraulic standalone overheat prevention device
Internal Dimensions WxDxH	310x310x310mm
External Dimensions WxDxH	410x450x680mm
Internal Capacity	27L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A with plug, round terminal
Weight	~35kg

Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 260°C)
Temp. Distribution Accuracy	±2.5°C (at 260°C)
Temperature rise time	~90min (at room temp. ~260°C)
Interior Material	Stainless Steel (SUS430)
Exterior Material	Steel plate SPCC (powder coating)
Heat Insulating Material	Glass wool
Heater	SUS pipe heater
Heater	0.8kW
Fan motor	Sirocco fan 10W
Cable Port	30 mm l.D.x1 pc. (right side)
Exhaust Port	30 mm l.D.x2 pcs. (top)
Temp. Controller	PLD control by a microprocessor
Temp. Setting Method	Digital setting by arrow key
Operation functions	Fixed temperature, Quick auto-stop, Auto stop, Auto start
Additional functions	Calibration offset function
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self-diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an overcurrent protector, hydraulic standalone overheat prevention device
Internal Dimensions WxDxH	310x310x310mm
External Dimensions WxDxH	410x450x680mm
Internal Capacity	27L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A with plug, round terminal
Weight	~35kg

Note: Please read description carefully. Do not base your order on the picture presented.
