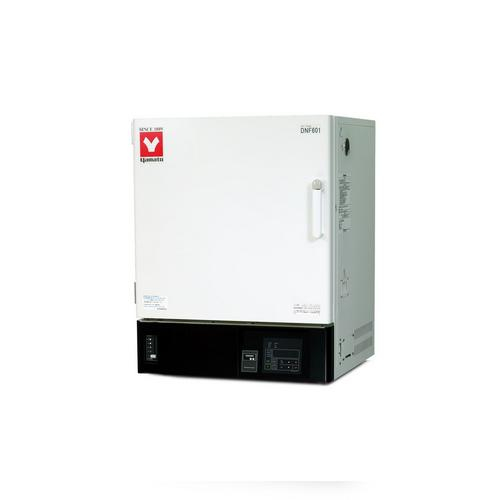

Yamato Scientific DNF-601 – DNF 150L Constant Temperature Oven, 115V Internal Capacity: 150L, Power: AC 100V

GET $5 OFF ON YOUR FIRST PURCHASE

Help

Quote Cart

My Cart

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Internal Capacity:: Internal Capacity: 150L
Power:: Power: AC 100V

DNF-601 Energy Saving & Air Velocity Controllable Forced Convection Oven

High-performance, energy-saving, programmable constant temperature, forced convection ovens with air velocity control and exhaust dampers. The first 2 in 1 system in the industry!

Features:

Two types of circulation, forced and natural convection, in one unit
Eco-oven with improved air velocity control system and adjustable damper
Program featured to reduce power consumption significantly
Superior heat tightness and insulation of chamber
Excellent dust tightness, dust can hardly enter the chamber
Air velocity changeable in 10 stages using digital setting of controller
Standard with 99 step program operation with repeat operation, auto start, auto stop and quick auto stop functions
Adjustable damper position at chamber front to optimize operation
Fluorescent display, interactive input method, calibration off-set function

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Model	DNF601
Method	2 in 1 type: Forced and Natural convection, with manual exhaust damper
Heater	0.83 kWx2
Exhaust port	50mm I.D. (Back)x1pc.
Additional functions	Calendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption / CO2 discharge /
Sensor	K-thermocouple x2pcs.
Shelf plate with standard load	Approx. 15kg/piece
Forced convection (Wind velocity setting:1-10) Operating temp. range	Room temp. +15 to 260°C
Forced convection (Wind velocity setting:1-10) Temp. control accuracy (JTM K05)	±0.3°C(at 260°C)
Forced convection (Wind velocity setting:1-10) Temp. fluctuation (JIS)	±0.5 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Temp. distribution accuracy (JTM K05)	±2.5 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Temp. gradient (JIS)	8 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Max. temp. reaching time	Approx. 100 min.
Natural convection (Wind velocity setting:0) Operating temp. range	Room temp. +25 to 120°C
Natural convection (Wind velocity setting:0) Temp. control accuracy (JTM K05)	±0.3 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. fluctuation (JIS)	±0.6 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. distribution accuracy (JTM K05)	±3 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. gradient (JIS)	13 ) ) at120 ) )
Natural convection (Wind velocity setting:0) Max. temp. reaching time	Approx. 25 min.
Interior / Exterior material	Stainless steel / Electro-galvanized steel sheet with epoxy and melamine resin baking finish
Heat insulating material	Glass wool
Cable hole	33mm I.D. (Right)x1pc.
Air in-take hole	33mm I.D. (Right)x1pc.
Temp. controller	PlD control by microprocessor
Temp. setting method	Digital setting by UP/DOWN key
Timer display range	Fixed value operation for 1 min. to 99 hr 59 min. and 24hr. setting
Additional functions	Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function
Safety countermeasures	Self diagnosis functions (Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Shelf support step number	13 steps
Shelf support pitch	30 mm
Accessories Shelf (Stainless punching metal)	2 pcs.
Accessories Shelf support	4 pcs.
Internal dimensions (W x D x H mm )	600x500x500mm
External dimensions (W x D x H mm )	730x695x940mm
Remarks(dimensions)	150L
Power Source	AC115V 16A Single-phase
Weight	90kg

Product Details

Model	DNF601
Method	2 in 1 type: Forced and Natural convection, with manual exhaust damper
Heater	0.83 kWx2
Exhaust port	50mm I.D. (Back)x1pc.
Additional functions	Calendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption / CO2 discharge /
Sensor	K-thermocouple x2pcs.
Shelf plate with standard load	Approx. 15kg/piece
Forced convection (Wind velocity setting:1-10) Operating temp. range	Room temp. +15 to 260°C
Forced convection (Wind velocity setting:1-10) Temp. control accuracy (JTM K05)	±0.3°C(at 260°C)
Forced convection (Wind velocity setting:1-10) Temp. fluctuation (JIS)	±0.5 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Temp. distribution accuracy (JTM K05)	±2.5 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Temp. gradient (JIS)	8 ) ) at 260 ) )
Forced convection (Wind velocity setting:1-10) Max. temp. reaching time	Approx. 100 min.
Natural convection (Wind velocity setting:0) Operating temp. range	Room temp. +25 to 120°C
Natural convection (Wind velocity setting:0) Temp. control accuracy (JTM K05)	±0.3 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. fluctuation (JIS)	±0.6 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. distribution accuracy (JTM K05)	±3 ) ) at 120 ) )
Natural convection (Wind velocity setting:0) Temp. gradient (JIS)	13 ) ) at120 ) )
Natural convection (Wind velocity setting:0) Max. temp. reaching time	Approx. 25 min.
Interior / Exterior material	Stainless steel / Electro-galvanized steel sheet with epoxy and melamine resin baking finish
Heat insulating material	Glass wool
Cable hole	33mm I.D. (Right)x1pc.
Air in-take hole	33mm I.D. (Right)x1pc.
Temp. controller	PlD control by microprocessor
Temp. setting method	Digital setting by UP/DOWN key
Timer display range	Fixed value operation for 1 min. to 99 hr 59 min. and 24hr. setting
Additional functions	Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function
Safety countermeasures	Self diagnosis functions (Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Shelf support step number	13 steps
Shelf support pitch	30 mm
Accessories Shelf (Stainless punching metal)	2 pcs.
Accessories Shelf support	4 pcs.
Internal dimensions (W x D x H mm )	600x500x500mm
External dimensions (W x D x H mm )	730x695x940mm
Remarks(dimensions)	150L
Power Source	AC115V 16A Single-phase
Weight	90kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
