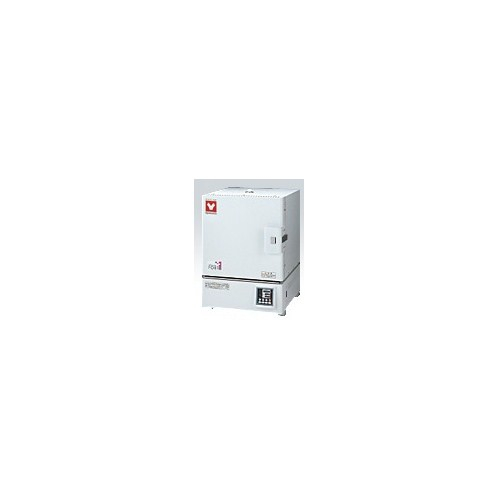

Yamato Scientific FO-810CR 220V 21A 50/60Hz 30L Muffle Furnace with Communication Port

  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

220V 21A 50/60Hz 30L Muffle Furnace with Communication Port

Features:

  • Due to the high adiabatic characteristic, temperature rises in a very short time.
  • Space-saving and compact type. But inner capacity is large.
  • Equipped with self-diagnosis function.

This FO series represent standard type of muffle furnaces which use a microprocessor controlled thermoregulator and which are capable of heat processing characterized by excellent repeat ability.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Operating temperature range100 to 1,150deg.C
Temp. control accuracy±2deg.C(at 1,150deg.C)
Max. temp. reaching timeApprox.80min
Exterior materialCold rolled steel plate with baked-on melamine resin finish
Furnace materialCeramic fiber
SensorR-thermocouple (Double sensor)
HeaterIron-chrome wire heater 4 kW
Cooling Fan TypeAuxial type fan
Temp. controllerPID control by microprocessor
Temp. setting methodDigital setting with UP/DOWN key
Temp display methodDigital display
Over heating preventionOn-off control by microprocessor
Over heating prevention
setting method		Digital setting
Operation functionProgram operation (2 patterns 8 steps or 1 pattern 16 steps)
Timer1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. Digital setting, Auto-start, Quick auto-stop
Power source 50/60Hz (single phase)Single phase AC200V 21A(30A)
Product Details
Operating temperature range100 to 1,150deg.C
Temp. control accuracy±2deg.C(at 1,150deg.C)
Max. temp. reaching timeApprox.80min
Exterior materialCold rolled steel plate with baked-on melamine resin finish
Furnace materialCeramic fiber
SensorR-thermocouple (Double sensor)
HeaterIron-chrome wire heater 4 kW
Cooling Fan TypeAuxial type fan
Temp. controllerPID control by microprocessor
Temp. setting methodDigital setting with UP/DOWN key
Temp display methodDigital display
Over heating preventionOn-off control by microprocessor
Over heating prevention
setting method		Digital setting
Operation functionProgram operation (2 patterns 8 steps or 1 pattern 16 steps)
Timer1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. Digital setting, Auto-start, Quick auto-stop
Power source 50/60Hz (single phase)Single phase AC200V 21A(30A)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
